MPS™ Flammable Gas Sensor
Rapid detection and precise measurement of over a dozen gases and gas mixtures, all with factory-calibrated accuracy.
World-class OEMs use The MPS™ sensor in their safety devices
THE MPS™ GAS SENSOR
The Gold Standard in Sensor Technology
Low-maintenance, highly accurate, and robust.
- No field calibration Immunity to saturation and poisoning and no field calibration eliminates the prohibitive cost of quarterly calibration trips & sensor replacements.
- Highly accurate gas detection Resolution to 0.1% LEL with built-in environmental compensation for temperature, relative humidity, and pressure for near-zero false positives.
- Very wide operating range & self-testing capability -40°C to 75°C operating range with up to 100% relative humidity. Built-In Self-Test (BIST) capability continuously evaluates the system to ensure it is operating to specification.
- Low power consumption Our new MPS 6.0 ultra-low-power sensor version requires just 1.35mW, making it ideal for battery-powered portable instruments.
- 15-year sensor life Unparalleled 15-year sensor life means low total cost of ownership and ensures uninterrupted monitoring.
- Certified as Intrinsically Safe Class 1, Div. 1 and Zone 0 certified and global safety certifications such as FM, CSA, IECEx, ATEX, EN50271 and IP65+.
The MPS™ Sensor Family
| Feature |
MPS™ 3.0) View Details |
MPS™ 4.0 View Details |
MPS™ 5.0 View Details |
MPS™ 6.0 ULP View Details |
|---|---|---|---|---|
| No required field calibration | ||||
| Immune to poisoning | ||||
| Immune to saturation | ||||

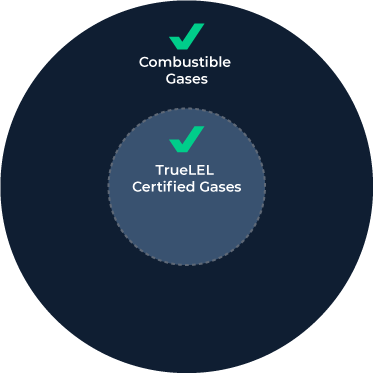

| TrueLEL™ multi-gas detection | ||||
| UART + Analog Out | ||||
| 15-year sensor life | ||||
| Power-On-Self-Test (POST) | ||||
| Built-In-Self-Test (BIST) | ||||
| Detects flammable gas during start-up | ||||
| 60079-29-1 Ed. 2.1 Annex A compliant | ||||
| Certified to EN 50271 | ||||
| Includes watchdog timer | ||||
| Power consumption | 29mW | 29mW | 27.3 mW | 1.35mW |
| Supply voltage | 3.3 - 5.0 ±5% VDC | 3.3 - 5.0 ±5% VDC | 3.0 - 5.0 ±5% VDC | 3.0 - 5.0 ±5% VDC |
Accuracy and Sensitivity
MPS™ Flammable Gas Sensor Precision
With a remarkable resolution of 0.1 %LEL ( Lower Explosive Limit), the MPS™ flammable gas sensors showcases its incredible precision. This means it can detect even the slightest changes in gas concentration, ensuring your safety and providing early warnings when needed. When every detail matters, trust Nevadanano’s sensors to deliver the utmost accuracy in monitoring flammable gases.
Speed
The MPS™ flammable gas sensors boasts lightning-fast response times, with a remarkable T90 of under 20 seconds. This means it can rapidly detect and provide precise measurements in the blink of an eye when it comes to potentially dangerous gas levels. Speed and accuracy are our top priorities, ensuring your safety and peace of mind in critical situations.
Measurement range
The MPS™ flammable gas sensors are designed to thrive in diverse environments, with an impressive operational range. It can operate reliably in temperatures ranging from a frigid -40°C to a scorching 75°C, ensuring versatility in various conditions. With a humidity tolerance spanning from 0% to 100% relative humidity (%RH), it’s equipped to handle moisture variations. Additionally, it comfortably operates under pressures between 80 kPa and 120 kPa. This broad environmental operating range showcases the sensor’s robustness and adaptability for your gas detection needs.
Applications and Industries
Oil Exploration
The MPS™ Flammable Gas Sensors can significantly contribute to safety, environmental compliance, and operational efficiency in the oil exploration industry by detecting and monitoring flammable gases at drilling sites and exploration facilities.
Production
The MPS™ Flammable Gas Sensors enhances safety in oil and gas production by detecting gas leaks, monitoring emissions, and protecting personnel and equipment. It ensures compliance with regulations, optimizes operations, and enables remote monitoring for efficiency.
Processing and Refining
In processing and refining operations in the oil and gas industry, the MPS™ Flammable Gas Sensors provides critical safety measures by detecting gas leaks, monitoring emissions, and safeguarding personnel and equipment. It ensures regulatory compliance, enhances operational efficiency, and enables remote monitoring for streamlined processes.
Distribution and Transportation
In distribution and transportation within the oil and gas industry, the MPS™ Flammable Gas Sensors plays a vital role in ensuring safety by detecting gas leaks, especially during the storage and transportation of flammable gases. It helps prevent accidents, protect personnel, and maintain compliance with safety regulations. These sensors are a key tool for enhancing the safe and efficient distribution and transportation of oil and gas products.
