Advancements in Gas Detection: Overcoming the Limitations of Traditional Technologies
For decades, the gas detection industry has relied on two key technologies: the Catalytic Bead Sensor (CAT/Pellistor) and Non-Dispersive Infrared Sensor (NDIR). These sensors have significantly increased safety in environments where flammable gases like methane, hydrocarbons, and hydrogen are present. However, while these technologies have served the industry for many years, new advancements in gas detection technology are now offering superior performance. One such breakthrough is NevadaNano’s Molecular Property Spectrometer™ (MPS™), the first truly innovative gas detection technology to be introduced in over four decades.
The Limitations of Traditional Gas Detection Technologies
Catalytic Bead Sensors (CAT) / Pellistors
Catalytic bead sensors, or pellistors, have been in use for nearly 50 years and are known for their sensitivity to a broad range of hydrocarbons. These sensors contain two beads: one coated with a chemical catalyst, and the other made of an inert material. When hydrocarbon gases come into contact with the catalyst-coated bead, a temperature difference is created that can be measured to determine gas concentration. However, while catalytic bead sensors are relatively inexpensive and robust, they have significant limitations.
One of the most critical drawbacks is their susceptibility to poisoning. When exposed to certain gases like higher hydrocarbons, alcohols, and hydrogen sulfide, catalytic bead sensors can become poisoned, resulting in inaccurate readings. This can be dangerous, as the sensor may appear to be working properly while failing to detect hazardous gases. Additionally, catalytic bead sensors are difficult to calibrate for multiple gases. If calibrated for one specific gas, the sensor will inaccurately measure other gases, posing safety risks in environments with mixed gas compositions.
Key Advantages
- Low cost
- Detects the full range of combustible gases
Key Limitations

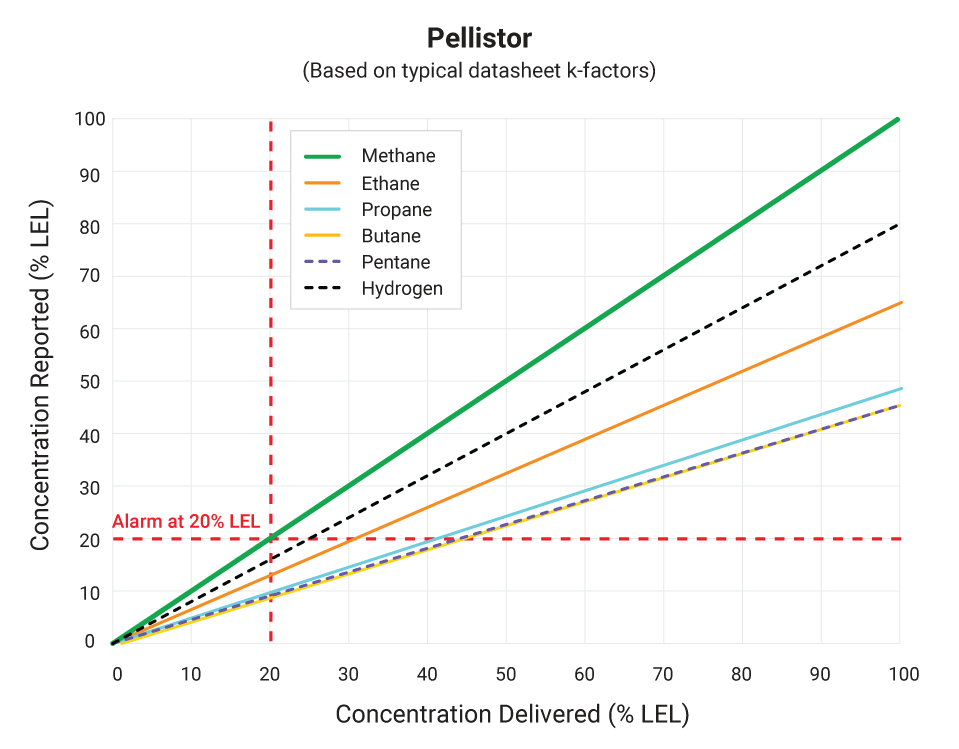

- Every gas heats the catalytic bead differently, so calibration to a single gas (e.g., methane) means the sensor will output inaccurately for all other gases. (See charts below)
- As the sensor is “used up,” the device needs calibrating.
- Accurate only for the specific gas it is calibrated to.
- Common chemicals—including silicones, chlorine, and acidic gases—deactivate, or “poison,” the catalyst bead. This can happen gradually or within minutes, depending on the environment.
- Flammable gases at high concentrations can “burn up” the catalyst, deactivating the sensors.
- Prolonged exposure to combustible gases may cause a pellistor LEL sensor’s zero reading to shift (or drift), resulting in inaccurate readings.
- Not fail-safe. Poisoned or burned-out sensors appear to be operating normally. Once discovered (via cumbersome bump check or re-calibration, e.g.), the sensor must be serviced and eventually replaced.
Non-Dispersive Infrared Sensors (NDIR)
Introduced in the 1970s, NDIR sensors operate by using infrared light to detect the different wavelengths absorbed by gases. These sensors are less prone to poisoning than catalytic bead sensors and do not burn out when exposed to high gas concentrations. They also offer a longer lifespan and can even function in low-oxygen environments. However, NDIR sensors are not without their limitations.
A major shortcoming of NDIR sensors is their inability to detect hydrogen, a highly flammable and potentially dangerous gas. Additionally, NDIR sensors are sensitive to environmental changes such as temperature and humidity, which can skew their readings. They also require calibration for each specific gas type, much like catalytic bead sensors, leading to the need for multiple sensors if different gases are present. Moreover, NDIR sensors are more expensive and consume more power than catalytic bead sensors.
Key Advantages
- Long life
- Resistant to contamination and poisoning
- Gases may be sensed in anaerobic conditions
Key Limitations
- Hydrogen cannot be detected (because it does not absorb infrared light).
- The open chamber can allow in humidity, fog, and ambient IR light, all of which cause interference.
- Susceptible to moderate changes (0.6 to 2.0 °C/min) in temperature/humidity (e.g., moving from freezing cold outdoors to warm, humid indoors during winter). Some products freeze their output during temperature transitions.
- Transient environmental conditions can cause gas readings to be inaccurate.

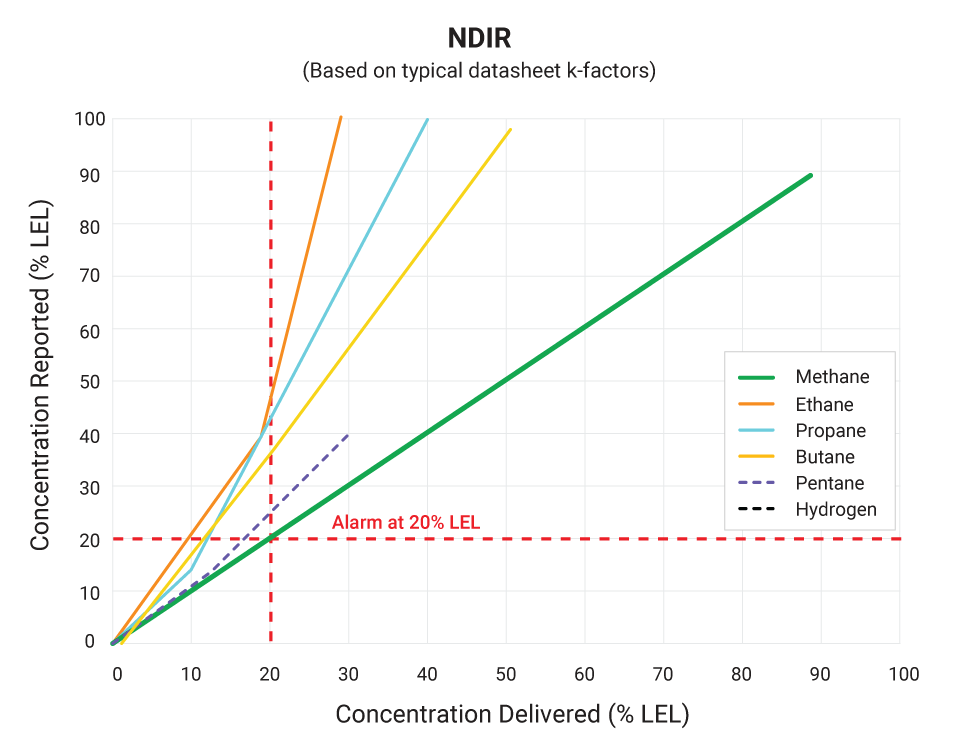

- Every gas has a unique absorption profile, so calibration to a single gas (e.g., methane) means the sensor will output inaccurately for all other gases.
MPS™ Sensors: A Proven, Advanced Solution in Gas Detection Technology
NevadaNano’s Molecular Property Spectrometer™ (MPS™) sensors have been setting new standards in gas detection for over seven years. This established technology has already made significant strides in addressing the limitations of traditional gas detection methods, offering superior accuracy and reliability in a wide range of environments.
The MPS™ sensor uses a micro-electromechanical system (MEMS) transducer, which measures changes in thermal properties of the surrounding gases. This system not only measures gas concentration but also provides environmental data such as temperature, humidity, and pressure. By analyzing these multiple data points, the MPS™ sensor can classify gases into categories such as hydrogen, methane, light gas, medium gas, or heavy gas, and report a true concentration reading.
What sets MPS™ sensors apart is their ability to detect up to 14 different flammable gases with a single sensor. Whether it’s hydrogen, methane, or heavier hydrocarbons, the MPS™ sensor provides accurate, real-time detection of all these gases, without the need for recalibration. This eliminates the need for multiple sensors to monitor different gases, simplifying gas detection in complex environments. Legacy flammable gas detection products like Pellistors and NDIR sensors cannot promise the same combination of accurate and reliable detection of multiple gases across the full environmental range.
Video Demonstration: Comparing Sensor Performance: MPS™ vs. Pellistor and NDIR Sensors
In this video demonstration, we’ll show how NevadaNano’s MPS™ Flammable Gas Sensor outperforms traditional Pellistor and NDIR sensors when exposed to gases to which they are not calibrated.
Sensor Performance Comparison
The Key Advantages of MPS™ Sensors
- No Poisoning, No Saturation: Unlike catalytic bead sensors, the MPS™ sensor is immune to poisoning and saturation, as it measures physical properties of gases rather than relying on chemical reactions. This ensures accurate readings, even in the presence of high concentrations of hydrocarbons and other substances that would typically poison traditional sensors.
- No Required Field Calibration: The MPS™ sensor is factory calibrated, and there is no need for field calibration. This ensures consistent, reliable performance without the need for manual recalibration, significantly reducing maintenance requirements.
- Long Lifespan (15+ Years): MPS™ sensors are designed to last over 15 years, providing long-term reliability with minimal maintenance. This extended lifespan adds to their cost-effectiveness, making them a better investment in the long run compared to traditional sensors.
- Low Total Cost of Ownership: Thanks to their long lifespan, no required field calibration, and durability, MPS™ sensors offer a low total cost of ownership. This makes them an ideal solution for companies seeking a low-maintenance and reliable option for gas detection.

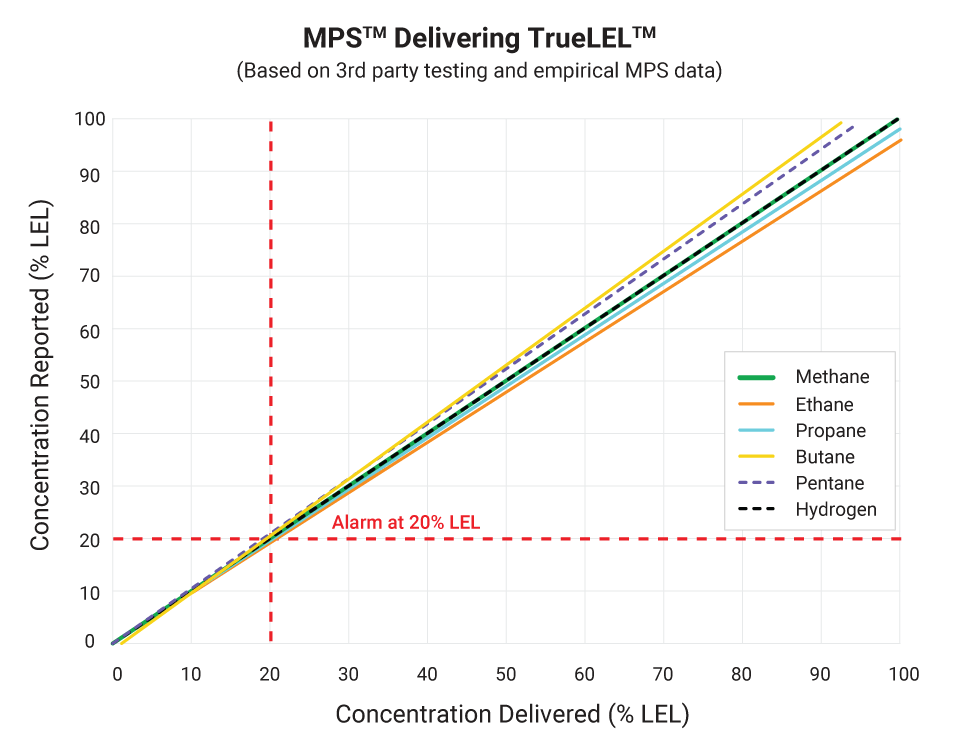

- TrueLEL™: Accurate to over a dozen flammable gases with a single calibration to methane. See Figure 1. To achieve this with Cat Bead or NDIR sensors, the user would need to deploy sensors for every gas of interest. Gases are automatically classified into one of the following categories: hydrogen; hydrogen-containing mixtures; methane (or natural gas); light, medium or heavy gases/mixtures.
- Robust with Built-In Self Testing (BIST): The MPS™ sensor is built to withstand challenging environmental conditions. With its robust design and Built-In Self Testing (BIST) capability, the sensor continuously monitors its own performance to ensure that it’s working to specification. This provides users with peace of mind knowing that the sensor is always performing at its best.
Safer Work Environments with MPS™ Sensors
The MPS™ sensor creates safer working environments by providing accurate data when it matters most. In environments where multiple flammable gases are present—such as oil and gas production, chemical processing, and refineries—MPS™ sensors can quickly identify and classify gases, alerting workers to dangerous conditions before they become hazardous. This ensures that appropriate safety measures can be taken, minimizing the risk of explosions, fires, or other dangerous events.
In contrast, traditional gas detection methods often fall short when multiple gases are present, leading to inaccurate readings and delayed response times. With MPS™ sensors, companies can have confidence that they are receiving the most accurate, real-time data available, ensuring a safer work environment for all personnel.
MPS | Pellistor | NDIR | |
---|---|---|---|
Responds to full range of flammable gases | Yes | Yes | No |
Capable of up to 100% v/v gas concentrations | Yes | No | Yes |
TrueLEL | Yes | No | No |
Glass classification | Yes | No | No |
Environmental range | Excellent | Good | Good |
Poison resistance | Excellent | No | Excellent |
Calibration interval | Excellent (None) | Poor (4x year) | Fair (1x year) |
Sensor lifetime | Excellent (15+ years) | Poor (2 years) | Good (5 years) |
Power consumption | Excellent (1.3 - 20mW) | Poor (> 150mW) | Excellent (0.4 - 1.5mW) |
Detects Hydrogen | Yes | Yes | No |
IEC 60079-29-1 compliant | Yes | Yes | Yes |
Total cost of ownership | Low | High | Fair |
The Future of Gas Detection: A New Era of Safety
NevadaNano’s MPS™ sensors are a game-changer in gas detection technology. By combining the best features of traditional technologies while addressing their limitations, MPS™ sensors are setting a new standard for flammable gas detection. These sensors represent the next generation of gas detection technology, offering unmatched accuracy, reliability, and safety.
As industries continue to prioritize safety and efficiency, MPS™ sensors are helping to raise the bar for gas detection, ushering in a new era of innovation. Whether in fixed or portable applications, MPS™ sensors are the future of safe, accurate, and efficient gas detection.
